VIKTORIA

NXP i.MX 6 Family, based on ARM® CORTEX-A9 processors
- i.MX6S Solo - Single core up to 1GHz
- i.MX6DL Dual Lite - Dual core up to 1GHz per core
- i.MX6D Dual - Dual core up to 1GHz per core
- i.MX6Q Quad - Quad core up to 1GHz per core

Up to 2GB DDR3L on-board (up to 1GB with i.MX6S)

Dedicated 2D Hardware accelerator
Dedicated 3D Hardware accelerator, supports OpenGL® ES2.0 3D
Dedicated Vector Graphics accelerator supports OpenVG™ (only i.MX6D and i.MX6Q)
Supports up to 3 independent displays with i.MX6D and i.MX6Q
Supports 2 independent displays with i.MX6DL and i.MX6S

1 x LVDS Dual Channel or 2 x LVDS Single Channel 18 / 24 bit interface
HDMI Interface
Video Input Port / Camera connector (only with PCB rev. C or higher)

LVDS, up to 1920x1200
HDMI, up to 1080p

On-board eMMC drive, up to 8 GB
mSATA Half-size slot (shared with miniPCI-express)

Gigabit Ethernet connector

3 x standard USB 2.0 Type A
1 x USB OTG on micro-AB connector
Internal USB for optional WiFi module

miniPCI-express slot, shared with mSATA (only PCI-e 1.1 and Gen2 are supported)

AC’97 Audio Codec

Mic In, Line out internal pin header connector

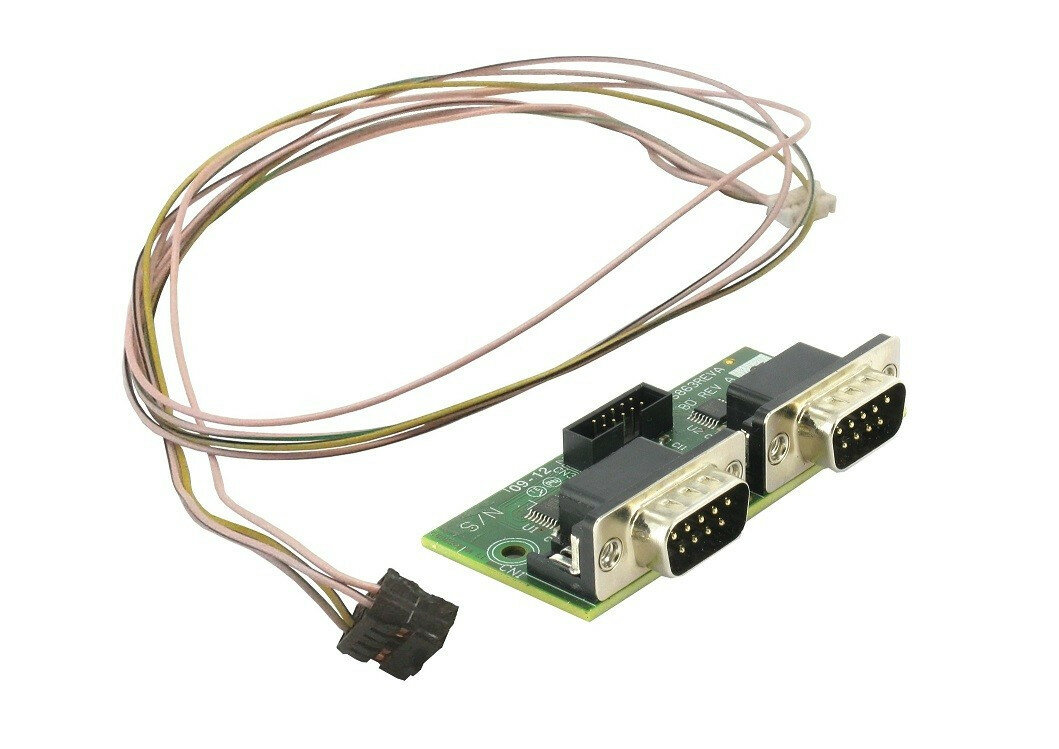

1 x RS-232 serial port
TTL debug UART (Tx, RX only)
CAN interface internal connector

I2C touch Connector
Internal connector for power and reset buttons

+12VDC ± 10%
Embedded additional RTC circuitry for lowest power consumption

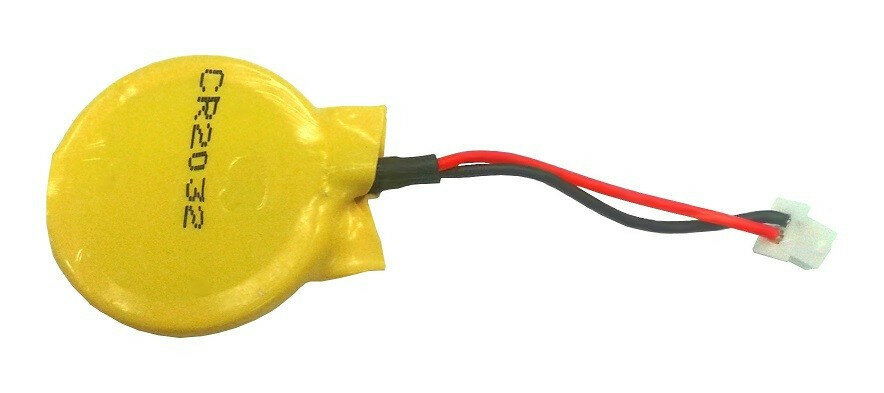

Optional RTC Battery with lead cable and connector

0°C  ÷ +70 °C (commercial version)
-40°C ÷ +85°C (industrial version)

*Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
