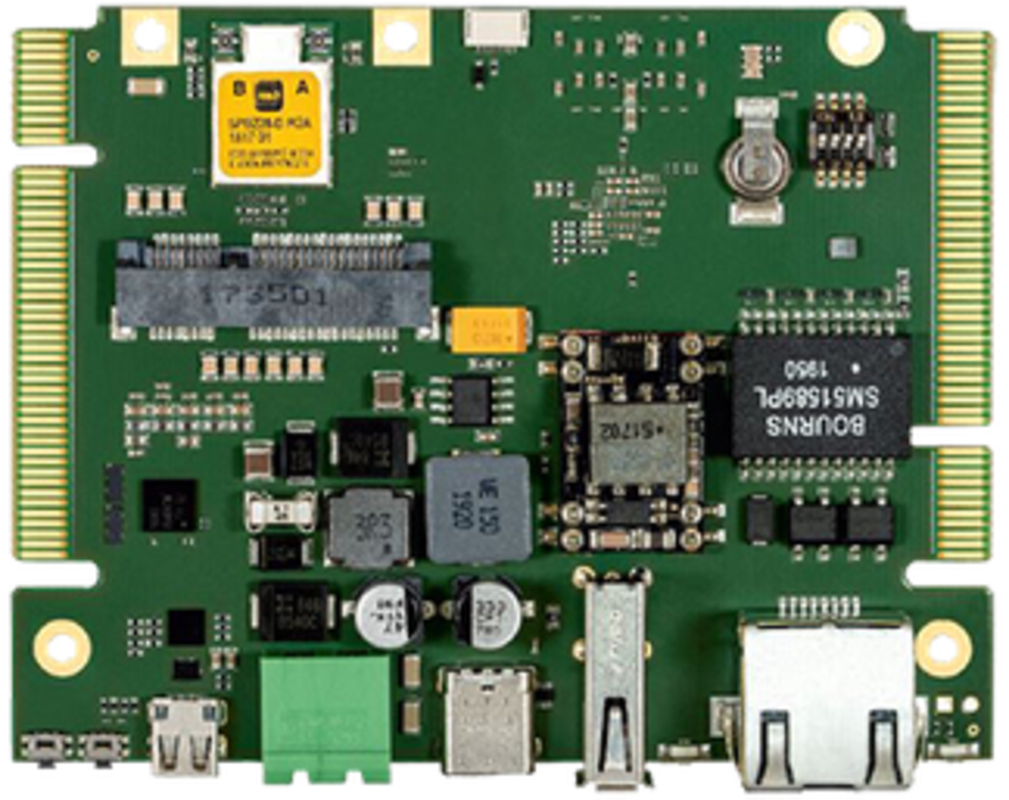

SBCSOM

搭载 i.MX 8M 迷你/纳米处理器的模块化单板计算机

Product status

Development
Sampling
Production
Available in Industrial Temperature Range
Data Sheet

Contact us for more information and quotes

联系我们

CPU

NXP i.MX 8M Mini Family

Graphics

GC320 2D accelerator + GCNanoUltra 3D accelerator

Connectivity

Wifi/BT, 1x GbE, up to 2x USB 2.0,HDMI, Mini PCIe

Memory

Soldered on Board LPDDR4-3200 memory, up to 8 GB

Product details

Technical Info

  • Description
    Experience the world's first solution that combines the advantages of the two product worlds Single Board Computer (SBC) and System on Module (SOM) by adding basic components and interfaces to a processor module.
  • Processor

    NXP i.MX 8M Mini Family based on ARM® Cortex®-A53 cores + general purpose Cortex®-M4 400MHz processor:

    i.MX 8M Mini Quad – Full featured, 4x Cortex®-A53 cores up to 1.8GHz
    i.MX 8M Mini Dual – Full featured, 2x Cortex®-A53 cores up to 1.8GHz
    i.MX 8M Mini Solo – Full featured, 1x Cortex®-A53 cores up to 1.8GHz
    i.MX 8M Mini Quad Lite Full featured, 4x Cortex®-A53 cores up to 1.8GHz
    i.MX 8M Mini Dual Lite – Full featured, 2x Cortex®-A53 cores up to 1.8GHz
    i.MX 8M Mini Solo Lite – Full featured, 1x Cortex®-A53 cores up to 1.8GHz

  • Memory

    up tp 8 GB 32 bit LPDDR4

  • Graphics

    GC320 2D accelerator + GCNanoUltra 3D accelerator Embedded VPU (not for Lite processors), able to offer:
    VP9, HEVC/H.265, AVC/H.264, VP8 HW Decoding
    AVC/H.264, VP8 HW encoding

    OpenGL ES 2.0, OpenVG 1.1 support

  • Video Interfaces

    LVDS Single/Dual Channel connector
    HDMI

  • Video Resolution

    Up to 1920x1080p60, 24bpp

  • Mass Storage

    Onboard 4 Bit wide μSD Card Socket or onboard 8 Bit wide eMMC, eMMC

  • Networking

    1x GbEthernet interfaces
    WLAN 2.4GHz/5Ghz, 802.11 a/b/g/n/ac 2x2 MU-MIMO / Bluetooth 5.0
    mPCIe socket for modems

  • USB

    1x USB 2.0 Type-C
    1x USB 2.0 Type-A

  • Audio

    Audio Codec

  • CAN Bus

    1x CAN (ISO/DIS 11898)

  • Other Interfaces

    System Connector 1: Power-Supply, 2x UART or SPI, I2C, USB, SDIO, MIPI-DSI (4ch), MIPI-CSI (4ch), PCie, GPIO (24)
    System Connector 2: Power-Supply, 2x UART, QSPI, I2C, USB, Speaker, Headphone, Line-In, Microphone, SPDIF, 12S, SIOP (Ethernet, fiber), GPIO (42)
    FFC Connectors: i-MOD UART (RS232/485), i-MOD USB/I2C, KUK-Modis (LVDS/MIPI), MIPI-CSI, Camera, Speaker

  • Power Supply

    12 ÷ 24 VDC

  • Operating System

    Windows 10 IoT, Linux Debian, Linux Yocto, Android

  • Operating Temperature

    -40°C  ÷  85°C (Industrial), -25°C  ÷  85°C (Extended Consumer), 0  ÷  70°C (Consumer)

  • Dimensions
    95.0 x 73.0 x 20.0 mm
